Anodes

The Model 2086 Plasma Extension Torch is designed for production applications where uniform and repeatable coatings are desired on inside diameters of 2.5 inches or larger. Standard penetrating lengths for the Model 2086 are 12 inches (305 mm) and 24 inches (610 mm), with custom lengths available from 6 inches to 72 inches. Straight, 45°, and 60° anodes are available, along with a choice of powder injection positions.



View the 2086 Anode Comparison Chart here.

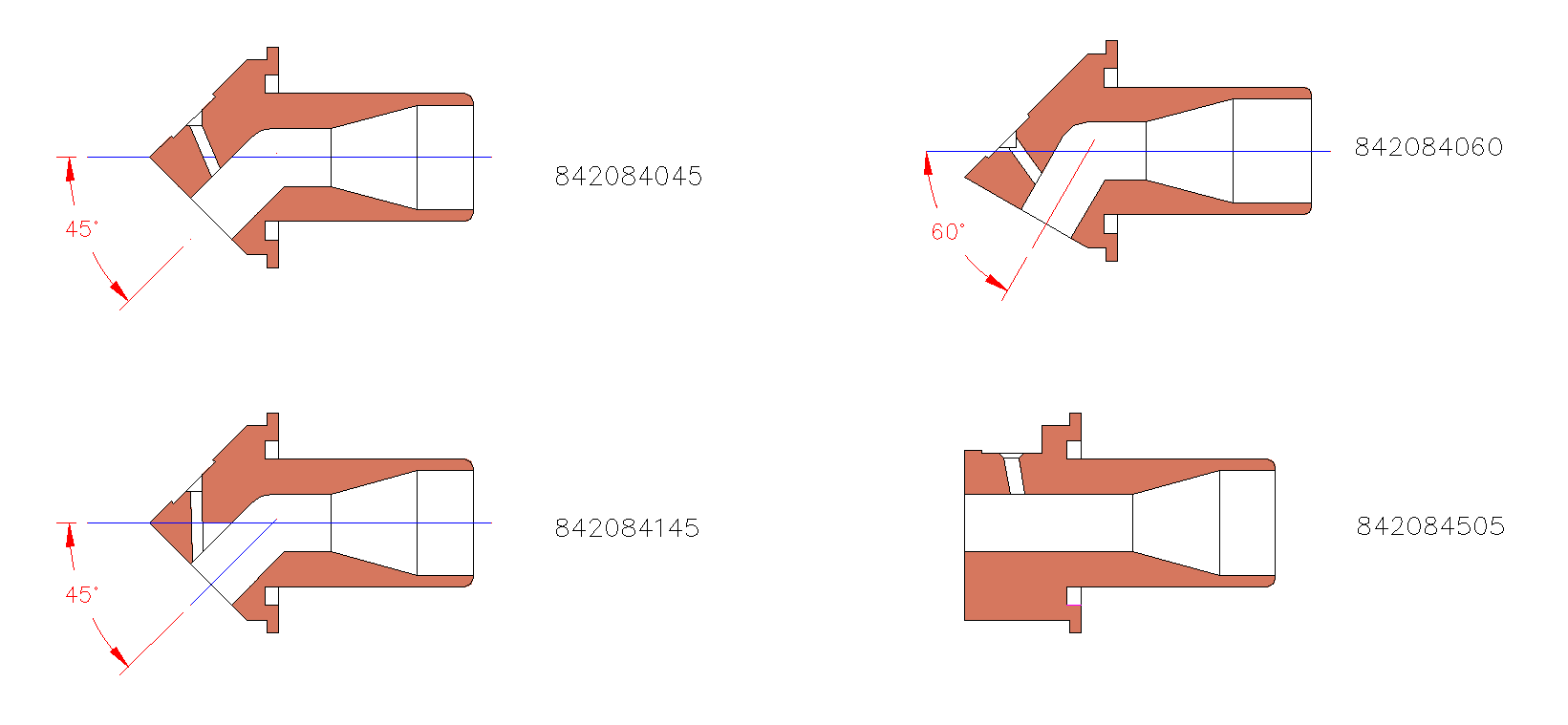

Following are general descriptions for each Anode available for your 2086 Plasma Extension Torch. To view the specific product image and add it to your quote request select it from the drop-down product options above.



PART NO. 842084045

ANODE WITH 45° SPRAY ANGLE. POWDER INJECTED MIDSTREAM OF BORE. (SAME AS F45 ANODE)

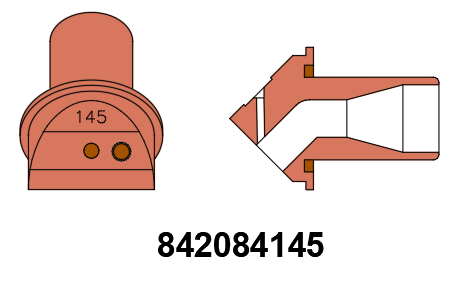

PART NO. 842084145

ANODE WITH 45° SPRAY ANGLE. POWDER INJECTED AT THE EXIT OF BORE.



PART NO. 842084060

ANODE
