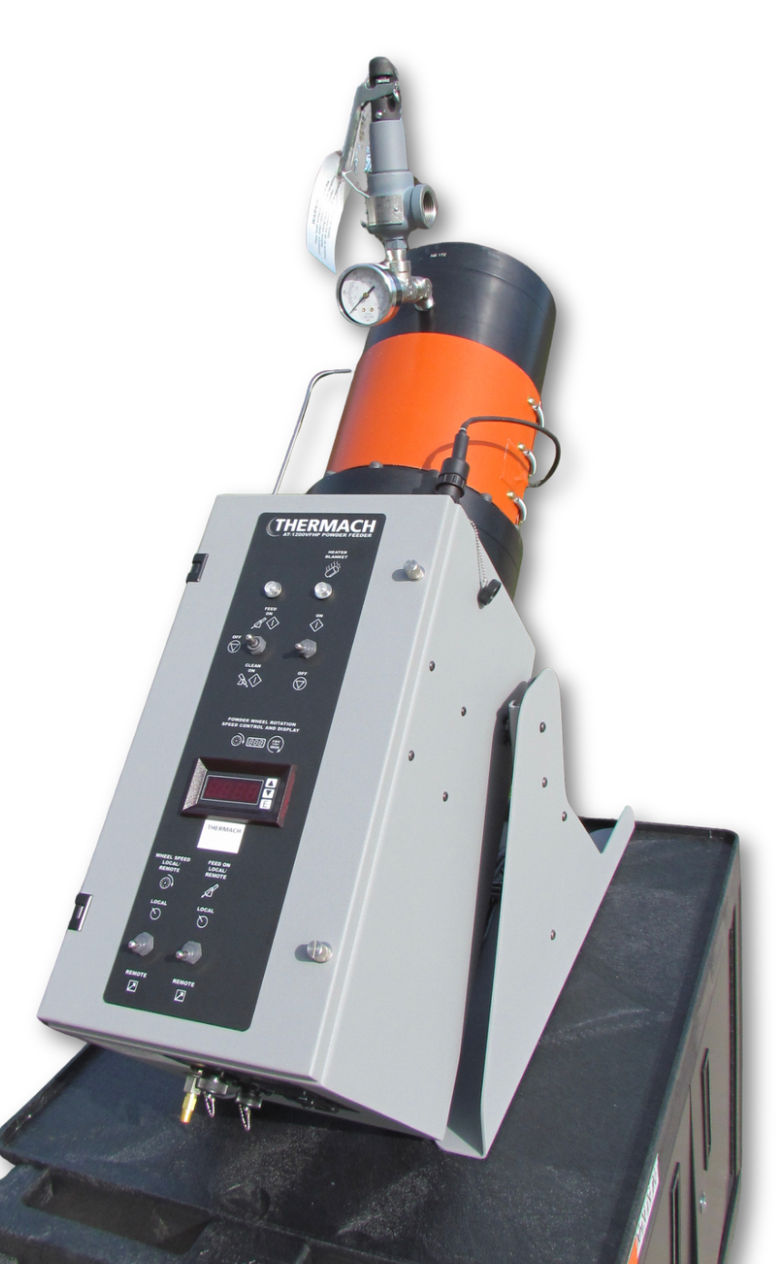

AT-1200VFHP Rotary Powder Feeder

Using the standard powder wheel, feed rates are typically between 1.97 cc per minute to 99.96 cc per minute. A variety of different powder wheels and motors can increase this range from 0.09 cc per minute to 267.11 cc per minute. Thermach Powder Feeders display the motor revolutions per minute, allowing for easy monitoring and control of process parameters.



Following are technical specs for the Thermach AT-1200VFHP Rotary Powder Feeder.  To add it to your quote request select it from the drop-down product options above.



PART NO. 861000401 AT-1200VFHP 115 VAC

PART NO. 861000549 AT-1200VFHP 230 VAC

  • Designed for cold spray applications where up to I000 PSI of back pressure is encountered
  • 43 RPM std. motor
  • Closed-loop wheel speed control
  • 1000 PSI max. pressure
  • 115/230VAC & 50/60Hz capable
  • 205 cu. In. capacity (3359 ml)
  • Remote control capable
  • (+/-) 2% feed accuracy



Your coating partner, not your competitor.

We provide the equipment and parts necessary for you to run a successful coating operation. Our mission is to ensure your coating process is running smoothly with Thermach equipment and parts.

AT-1200VFHP
