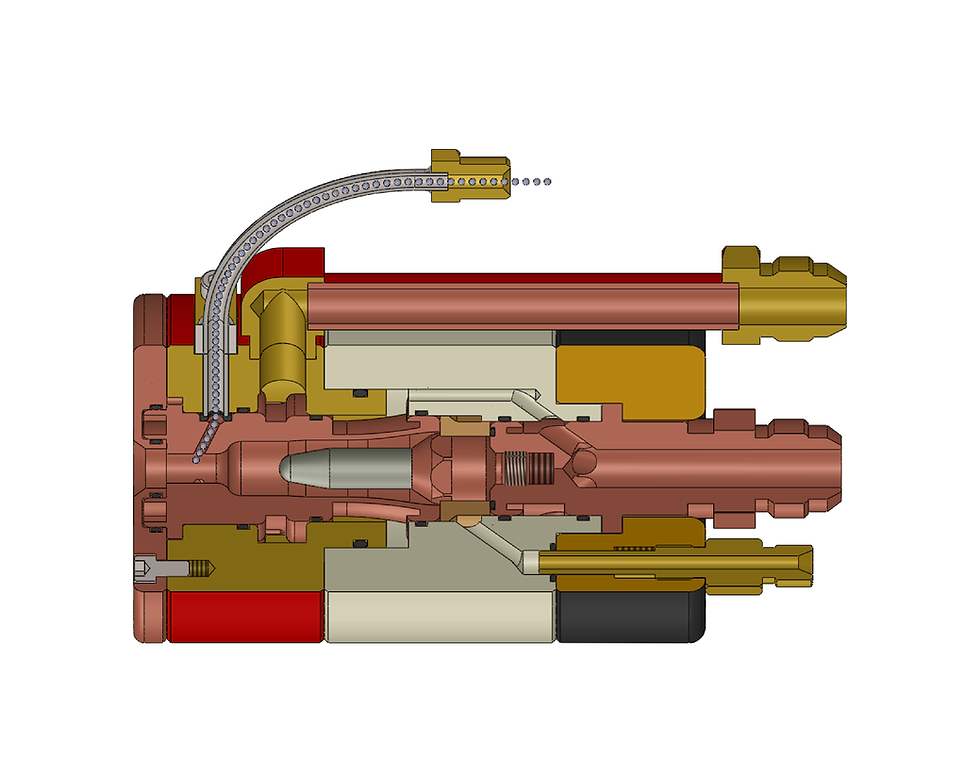

Plasma Spray Torch

The SG-100 is a robust and proven plasma torch with plenty of options. This multimode torch can spray subsonic, Mach I, and Mach II - depending on hardware. Available in standard, 90 degree, and interior diameter extension configurations.



SEE ALL SG-100 PLASMA TORCH CONSUMABLES, HOSES,  ACCESSORIES & CABLES



Following are general descriptions for each SG-100 Torch configuratioon available for your SG-100 Plasma Torch:



PART NO. SG100

GUN, PLASMA, SG100  (INDICATE ANODE, CATHODE, & GAS INJECTOR)

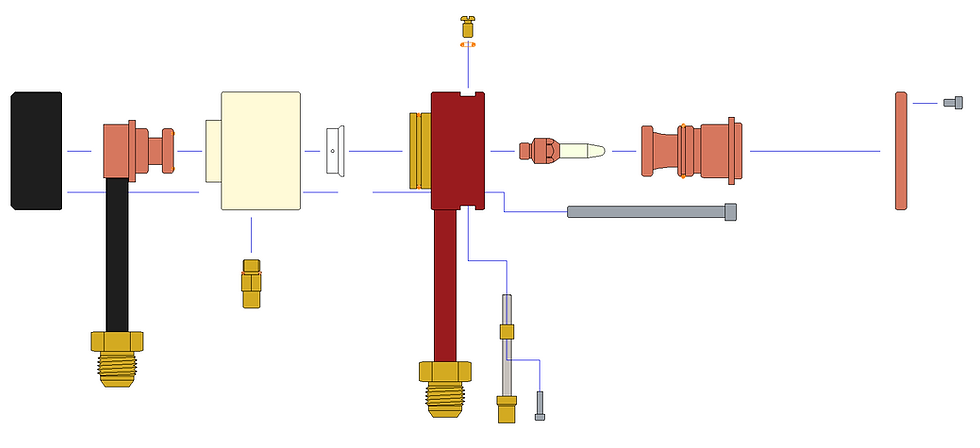

PART NO. SG100-90

90 DEGREE SG100 GUN WITH MOUNTING BRACKET



PART NO. SG100M

GUN, PLASMA, SG100  FOR METCO SYSTEM



The SG-100 Plasma Spray Torch rapidly applies uniform and repeatable Plasma Spray coatings to a variety of materials and is readily usable in high-volume production environments. Designed for machine or robot mounting, the SG-100 Plasma Spray Torch uses a variety of water-cooled, self-aligning anodes designed for specific spray operations. Maximum power level of the SG-100 torch is 80 kW.



Normal operation of the SG-100 Plasma Spray Torch requires a minimum cooling water flow of 8 gallons per minute (15.2 Liters per minute). See Figure 2-1 (above) for the cooling water flow curves at various pressures.



  • Easy to maintain - self-aligning assembly
  • Repeatable coatings
  • Flexible powder injection; internal or external
  • A wide variety of anode, cathode, and gas injectors to match application requirements
  • Subsonic, Mach I, and Mach II spray velocities
  • 80KW capability
  • Suitable for Production and Research



To learn more about the Thermach Plasma Thermal Spray Coating System click here.



Your coating partner, not your competitor.

We provide the equipment and parts necessary for you to run a successful coating operation. Our mission is to ensure your coating process is running smoothly with Thermach equipment and parts.

SG-100 Plasma Torch
